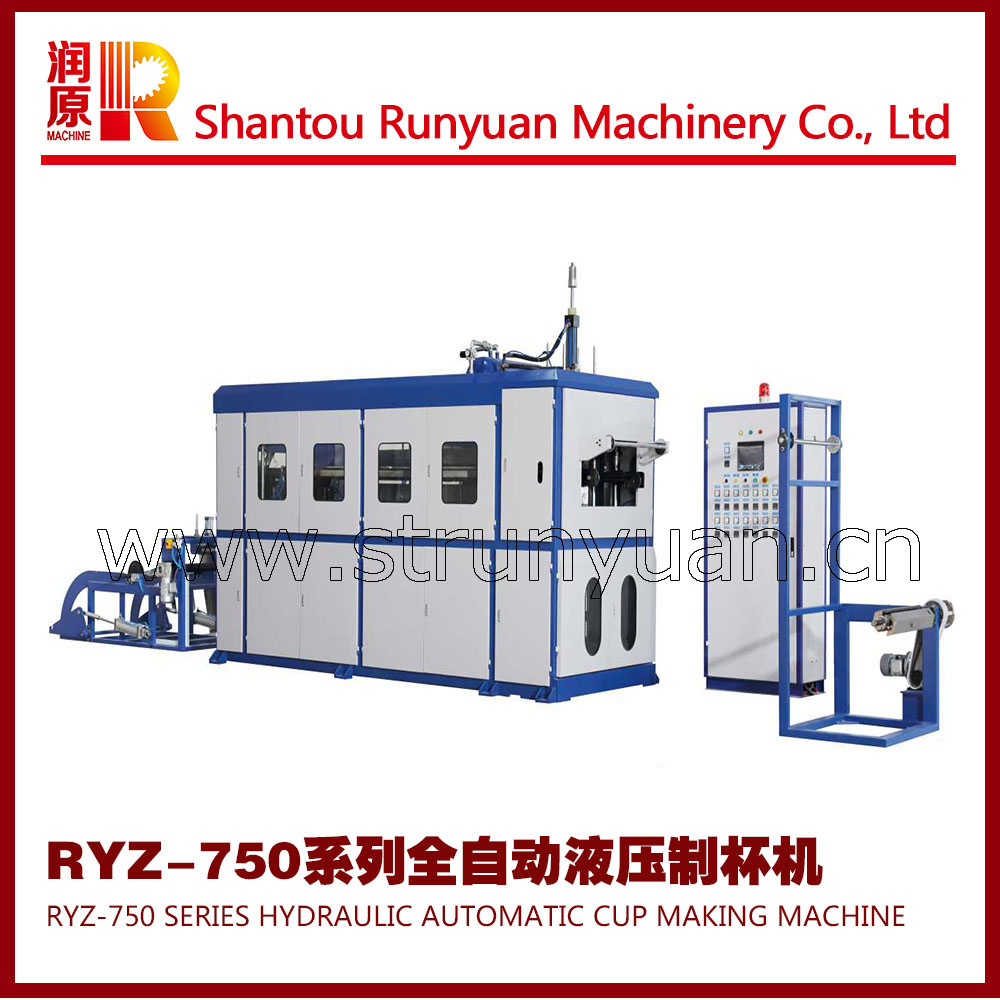

RYZ-750 Series Hydraulic Automatic Cup Making Machine
RYZ-750系列全自動液壓制杯機
A. Functions and Characteristics 功能與特點
RYZ-750 Series of Full-automatic Hydraulic CUP-making Machine developed by our company is a fully automatic plastic container’s forming machine which features in high speed and high efficiency. This machine is applicable to the production of plastic sheet material, such as PS, PP, PVC, PET and ABS
RYZ-750系列全自動液壓制杯機是我司開發研制的高速度,高效率的全自動塑料容器的成型機。該機適用于生產PS,PP,PVC,PET,ABS等塑料片材。
This equipment adopts five-fulcrum rotary arm structure and is driven by hydraulic system. It is equipped with built-in lubricating system, so it doesn’t have out-lay oil tubing. Its rotary arm is formed by one-off integrated forge. So it features in high operational efficiency, small noise, small vibration, less failure and stable operation, which can efficiently improve the service life and reduce the difficulty on maintenance. Its stretching part adopts hydraulic cylinder, air cylinder, and servo motor, which feature in stable operation, low power consumption and convenient application.
該設備采用五支點擺臂結構,使用液壓系統驅動,且采用內置式潤滑系統,無外置油管,擺臂座使用一體化鍛造成型,運行時效率高,噪音小,震感小,故障少,運行穩定。有效提高機械使用壽命及降低維護難度。拉伸部分采用(液壓油缸,汽缸,伺服電機),運行穩定,耗電量低,使用方便。
This machine adopts PLC system to control: mould travel, mould opening and closing. The pressure of cutting is set on touch screen. The travel of mould can be regulated freely. Mould will not fall off when the machine stops.
該機器采用PLC系統控制模架,模具開關。切割的壓力設置在觸摸屏上,模架可以自由調節,當模具停止時,模具不會脫落。
B. Description 描述
1、Power Supply 380V/3P/50Hz(special voltage available) 電源:380V/3P/50Hz (特殊電壓可用)
2、Material: PP/PS/PET/PVC 材料:PP/PS/PET/PVC
3、Driving Method Hydraulic+Pneumatic 驅動方法:液壓+空壓
4、Running speed 20-35 cycles/min 速度:20-35次/分鐘
5、Sheet Width L=750mm(Adjustable)片材寬度 L=750mm (可調節)
6、Installed Machine Size 7×1.7×2.3m 裝機尺寸:Size 7×1.7×2.3米
7、Power Consumption 50-55kw/h 能量功耗:50-55千瓦/小時
C. Parameter: 參數
Model 型號 | RYZ-750B |
Applicable Sheet 適用片材 | PP,PS,PE, |
PVC,PET,ABS | |
Sheet Thickness 適用片材厚度 | 0.2-2.0mm |
Sheet Width 適用片材寬度 | 600-750mm |
Mould Platform Area 模臺面積 | 460×750 |
Max Forming Depth *成型深度 | 160mm |
Work Frequency 工作頻率 | 20-35time/min 20-35次/分鐘 |
Rated Power 額定功率 | 80kw |
Air Pressure 適用氣壓 | 0.6-0.8mpa2m3 |
Weight 重量 | 7T |
Dimensions 外形尺寸 | 7000×1500×2250 |

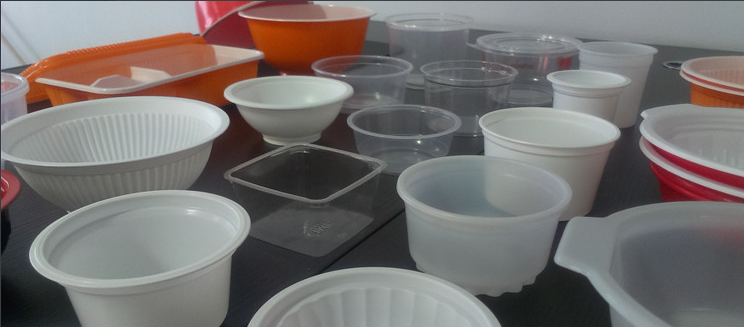

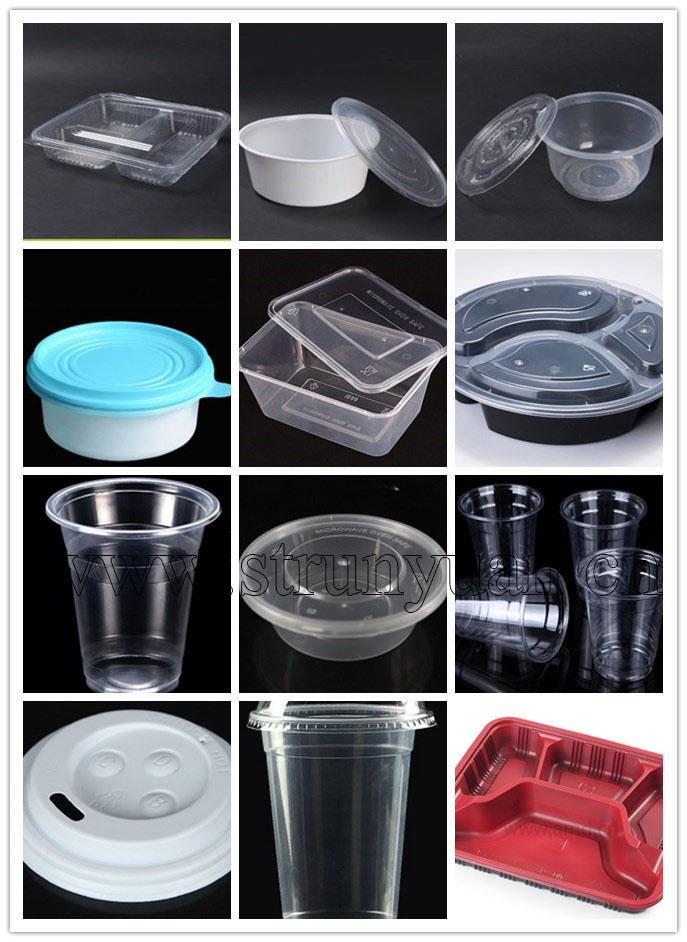

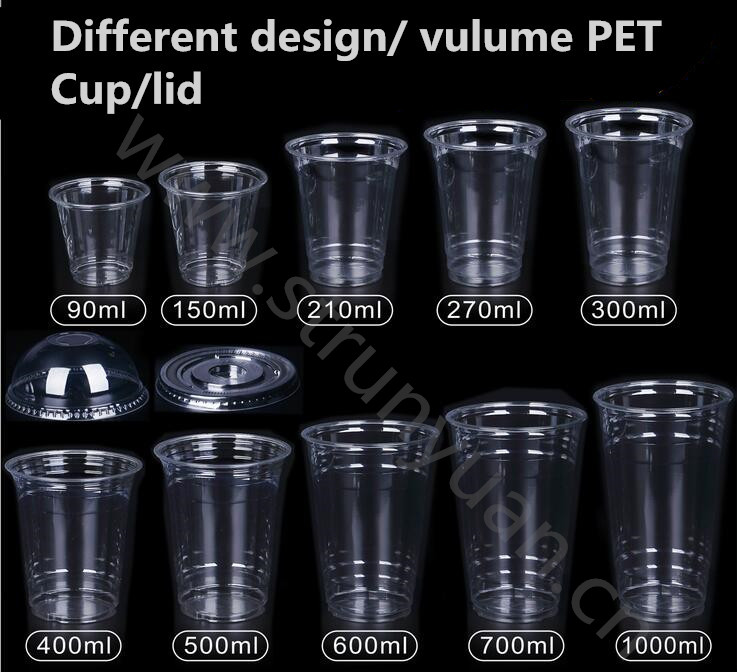

D.Samples Picture: 樣品圖片

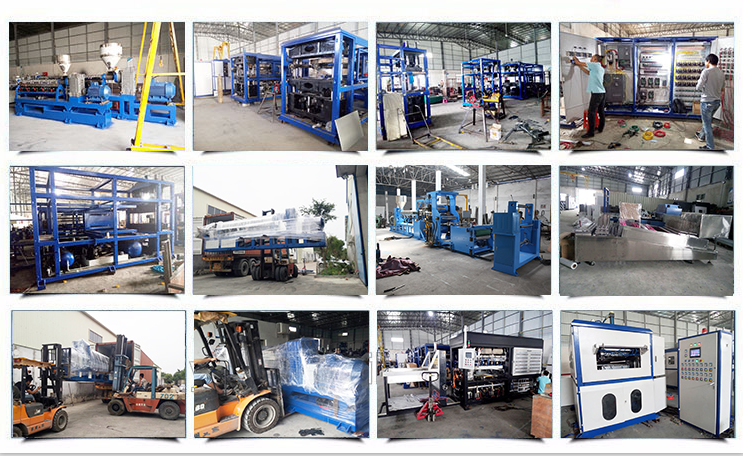

E.Factory Picture: 工廠圖片
